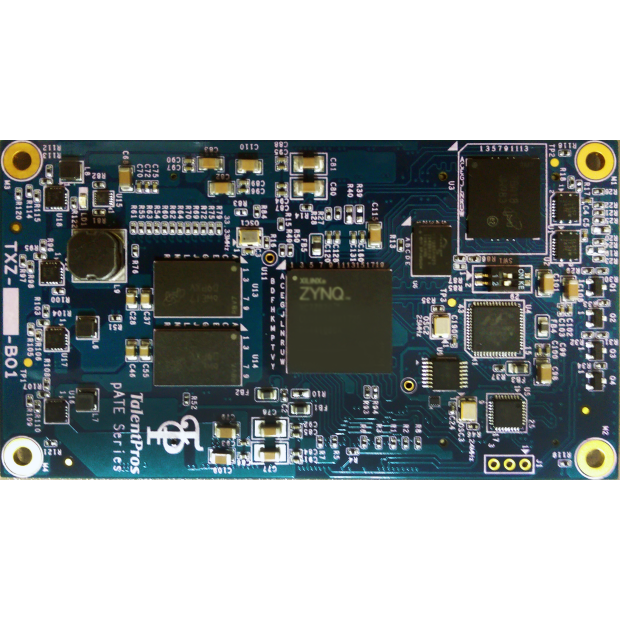

FPGA ARM based SOC module : TXZ-1320

FPGA ARM based SOC module : TXZ-1320

詳細介紹

TPS-Z7020 Multi-Function Board

Advanced Acquisition & Logic Control: Precision Sensing Meets Heterogeneous Computing.

整合 16 通道數位化器與 LVDS 模式接收器,為晶片掃描測試與高速工業控制提供全方位的異構解決方案。

16-CH High-Speed Digitizer

內建 16 通道數位化器與靈活的 DIO 控制器,實現多點並行的高精度信號採集與處理。

Algorithm Accelerator

利用 Zynq-7020 的 85K 邏輯單元實現硬體加速,大幅提升實時信號分析與運算效能。

LVDS Pattern Receiver

板載 LVDS / mini LVDS 測試模式接收器,專為顯示介面驗證與高速序列數據接收設計。

定義高密度的數據採集與邊緣控制

TPS-Z7020 是一款專為複雜測試環境設計的多功能控制平台。透過 Xilinx Zynq-7000 SoC 架構,它將 演算法加速器 (Algorithm Accelerator)網路存取控制 (Network Access) 封裝在超小尺寸的 PCB 空間內,不僅優化了 高速訊號整合 (Signal Integrity),更為工業 4.0 應用提供了極速的 上市時程 (Time-to-market) 優勢。

  • 多通道晶片掃描測試: 支援板載多通道 Chip Scan In/Out 測試,是半導體驗證與除錯的理想選擇。
  • 強大的存取資源: 配備 1GB DDR3 大容量緩存與 4GB eMMC 存儲,滿足大數據量採集的緩衝需求。
  • 彈性的 I/O 擴充: 提供多達 115 組 PL User I/O,支援各種自定義工業周邊介面對接。
  • 完善的網路連接: 整合 Gigabit Ethernet 與 USB 2.0 PHY,實現高效的遠端監控與數據回傳。

Technical Specifications

TPS-Z7020 Hardware Resources
Core SoC Xilinx Zynq-7020 (XC7Z020-CLG400) | 85K Logic Cells
Memory & Storage 1GB DDR3 RAM | 4GB eMMC Flash
Digitizer & I/O 16 Channels Digitizer + DIO | Digital I/O Controller
Signal Interface LVDS / mini LVDS Pattern Receiver on Board
Test Capabilities Multi-channel Chip Scan In/Out Support
Communications Gigabit Ethernet PHY | USB 2.0 PHY
Functional Blocks Algorithm Accelerator | Network Access Controller
User I/O Pins 115 PL Pins | 10 PS MIO Pins
Physical & Power 101 x 57 mm Small Form Factor | 5V~12V Power In

Request Full Technical Documentation

Detailed datasheets, API SDKs, and hardware setup guides for TPS-Z7020 are available upon request.
Please contact our technical team for more information regarding Data Acquisition & Control solutions.

Contact Our Technical Team
