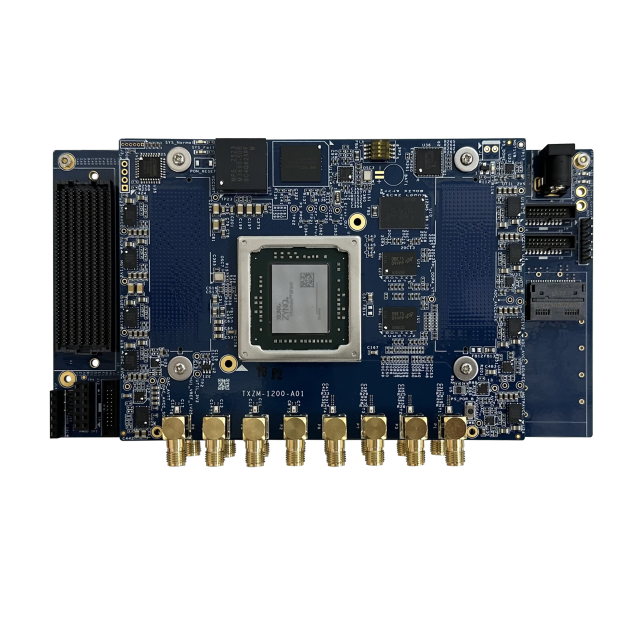

TPS- ZU48DR RFSoC Module
● AMD Zynq™ UltraScale+™ RFSoC 48DR Module
Processor: Quad-core Arm Cortex®-A53, Dual-core Arm Cortex-R5
System Logic Cells (K): 930
Block RAM: 38Mb
UltraRAM: 22.5Mb
DSP Slices: 4,272
GTY Transceivers: 16(TX/RX)
Memory:PS LPDDR4 4GB (32-bit), PL DDR4 4GB (32-bit)
Storage: SDHC x 1, eMMC: 4GB
● RF Communication
Signal Output:SMA x 8, 14-bit RF-DAC with DUC, up to 9.85 GSPS
Signal Input:SMA x 8, 14-bit RF-ADC with DDC, up to 5 GSPS
● Control Interface
Low-speed Interface:USB to UART bridge
High-speed Interface:PS 1G Ethernet (SFP / RJ-45), USB 3.0 Type-A, PL 100G Ethernet (QSFP28)
General Interface: FMC 560-pin, PMOD SPI / I2C, CAN bus
● Power Consumption
Max Power: DC 12V, 6A (Estimated)
Static Power: DC 12V, 0.3A (Estimated)
TPS- ZU48DR RFSoC Platform
TPS- ZU48DR RFSoC Module

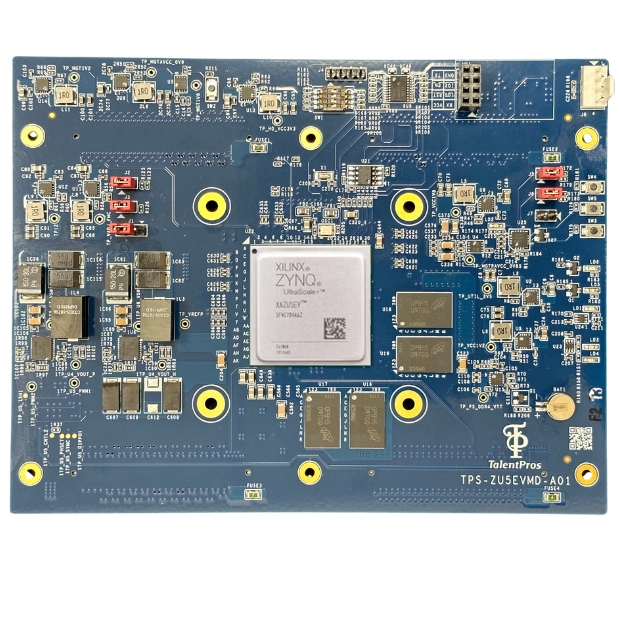

Xilinx Zynq UltraScale+ MPSOC _ TPS-ZU5EV / ZU7EV SoM
