Empowering Large-Scale SoC Innovation with Scalable Capacity and Intelligent Control.
專為大型 SoC 設計提供高容量、可擴充且易於管理的硬體原型驗證解決方案 。
Massive Capacity & Scalability
Advanced Connectivity
Smart Management & Reliability
-
高性能驗證： 提供接近真實晶片運行的時鐘頻率。
-
彈性擴充： 支援多種規格 Daughter Cards，滿足多樣化接口需求。
-
快速部署： 支援強大的分析與 Design Partition工具，縮短設計編譯與佈署時間。
Configuration
USB 2.0 / Gigabit Ethernet / JTag / Micro SD Card
Security
Support AES-Key 256-bit Encryption
Smart Management & Reliability
Real-time monitoring of voltage, current, and temperature with automatic shut-down to prevent damage from over-limit conditions.

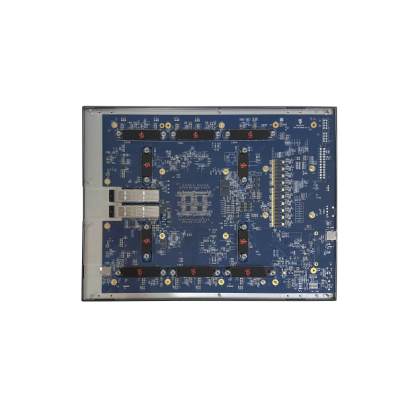

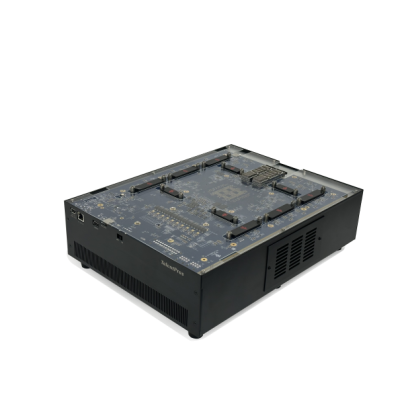

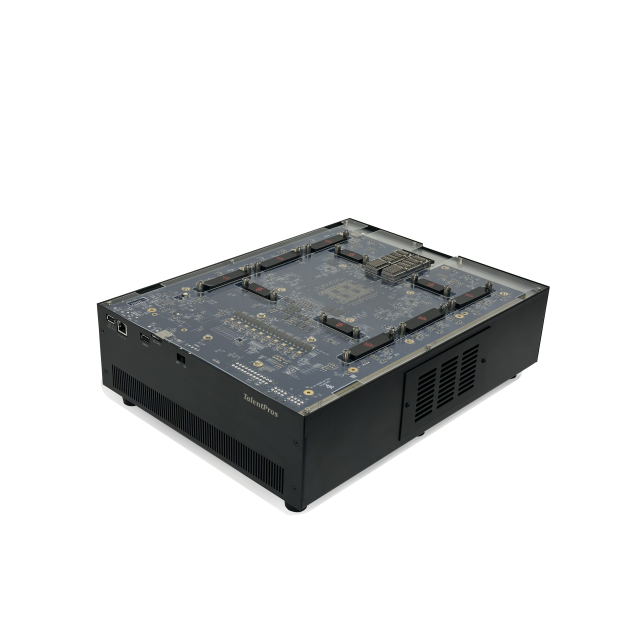

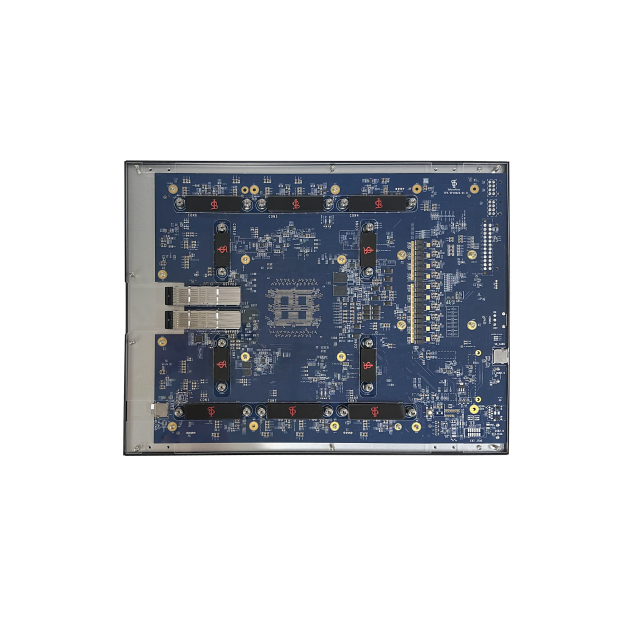

| TPS-VP1902 ID+ | |
|---|---|
| 房型Process | 7nm |
| 房型System Logic Cell | 平日價18,507 K |
| VCCINT Core Power | 170A |
| Memory | 858 Mb ( Block RAM:239Mb, Ultra RAM:619Mb) |
| Transceivers Max Rate | 平日價GTYP: 16 Gbps / GTM:56Gbps (PAM4) |
| XP IO | 924 ( 6 High Speed Connectors) |
| HD IO | 44 |
| GTYP | 64 (TX/RX) |
| QSFP-DD | 16 (TX/RX) , 56Gbps (PAM4) |
| DDR4 SODIMM | 16GB / 2.4Gbps * 2 |
| PCIe | Gen5 / Gen4 / Gen3 |
| MIPI D-PHY | 2.5 Gbps |
Request Full Specifications:
Detailed datasheets and technical documentation are available upon request.
Please contact our team for more information regarding the TPS-VP1902-ID+
