Empowering Large-Scale SoC Innovation with Scalable Capacity and Intelligent Control.
大容量、智慧監控、遠端部署：TPS m-View 讓硬體驗證更簡單、更可靠。
Massive Capacity & Scalability
Advanced Connectivity
Smart Management & Reliability
-
大容量高性能： 搭載 XCVU19P FPGA，具備 8,938K 邏輯單元與 165.9Mb 內部記憶體 。
-
彈性擴充： 支援多種規格 Daughter Cards，滿足多樣化接口需求。
-
智慧管理與高可靠性： 內建智慧型管理中心，支援遠端燒錄、自我診斷（Self-Test）與即時功耗/溫度監控。自動斷電保護機制，確保開發流程萬無一失。
Configuration
USB 2.0 / Gigabit Ethernet / JTag / Micro SD Card
Security
Support AES-Key 256-bit Encryption
Smart Management & Reliability
Real-time monitoring of voltage, current, and temperature with automatic shut-down to prevent damage from over-limit conditions.

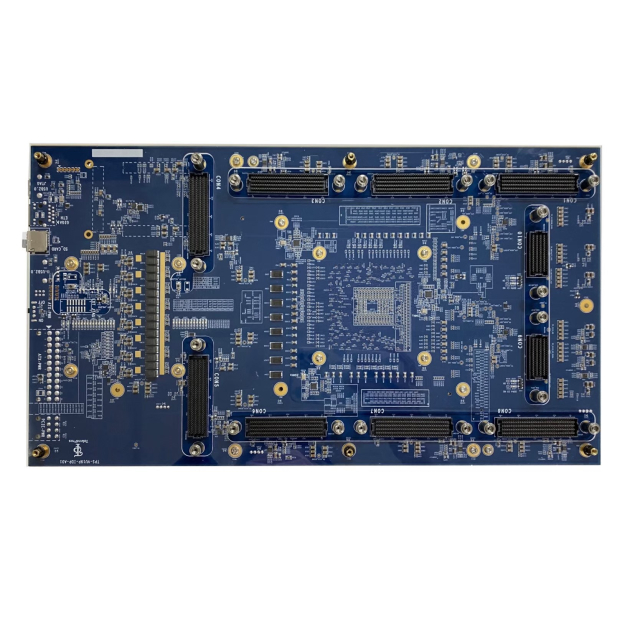

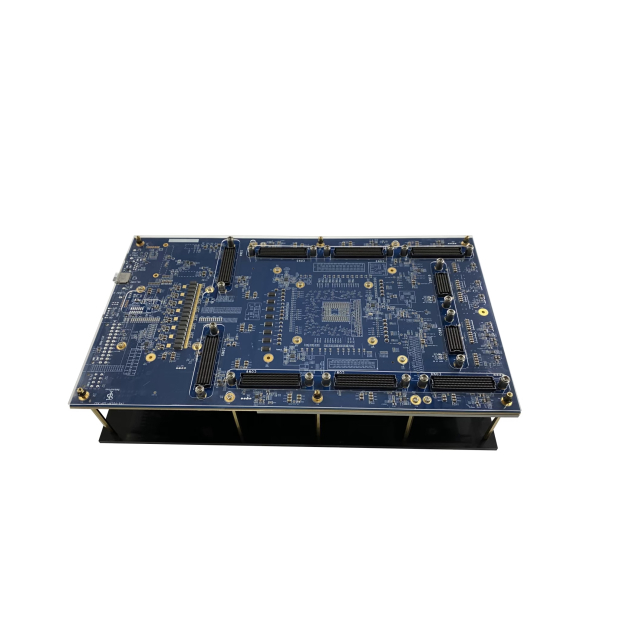

| TPS-VU19P ID+ | |
|---|---|
| 房型Process | 16nm |
| 房型System Logic Cell | 8,938 K |
| VCCINT Core Power | 200A |
| Memory | 165.9 Mb ( Block RAM:75.9Mb, Ultra RAM:90Mb) |
| Transceivers Max Rate | 平日價GTYP: 16 Gbps |
| HP IO | 1280 |
| HD IO | 48 |
| GTY | 24 (TX/RX) |
| DDR4 SODIMM | 16GB / 2.4Gbps * 2 |
| PCIe | Gen4 / Gen3 |
| MIPI D-PHY | 1.5 Gbps |
Request Full Specifications:
Detailed datasheets and technical documentation are available upon request.
Please contact our team for more information regarding the TPS-VU19P-ID+
