Request Full Specifications:
Detailed datasheets and technical documentation are available upon request.
Please contact our team for more information regarding the Display Port 1.4 Board.
Daughter Cards

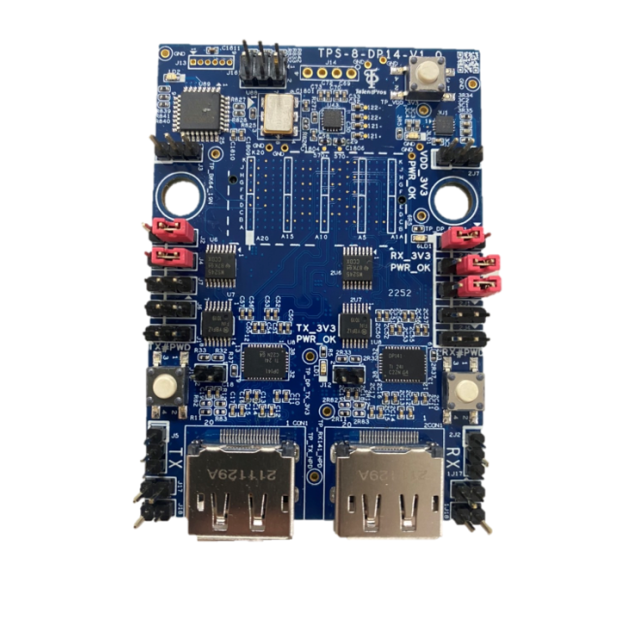

Display Port 1.4 Board
Display Port 1.4 Board
Display Port 1.4 Board
**supports 4 lanes of 1.62Gbps, 2. 7Gbps 5. 4Gbps, and 8. 1Gbps
•Displayport TX
。(One port) - DP1.4_8Gbps
。One port with four lanes
。Control Pins with jumpers
•Displayport RX
。(One port) - DP1.4_ 8Gbps
。One port with four lanes
。Support one RX port at a time
。Control Pins with jumpers
**supports 4 lanes of 1.62Gbps, 2. 7Gbps 5. 4Gbps, and 8. 1Gbps
•Displayport TX
。(One port) - DP1.4_8Gbps
。One port with four lanes
。Control Pins with jumpers
•Displayport RX
。(One port) - DP1.4_ 8Gbps
。One port with four lanes
。Support one RX port at a time
。Control Pins with jumpers
