Kintex UltraSacale Series

TPS-KU040 FPGA Platform

TPS-KU040 FPGA Platform

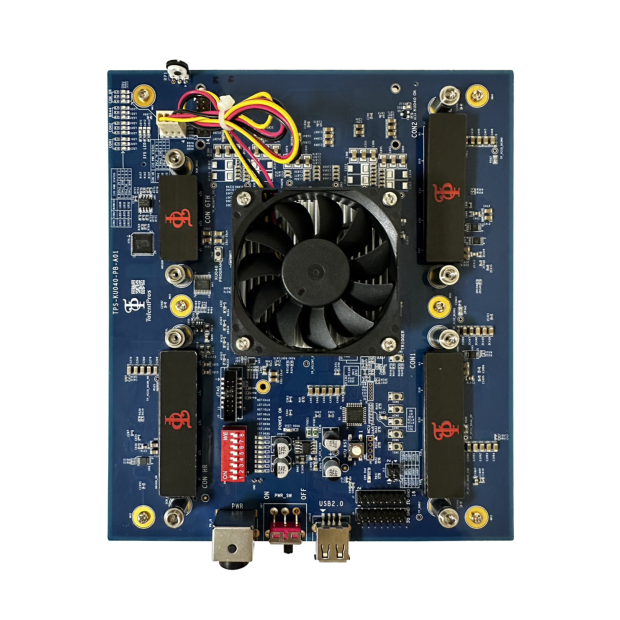

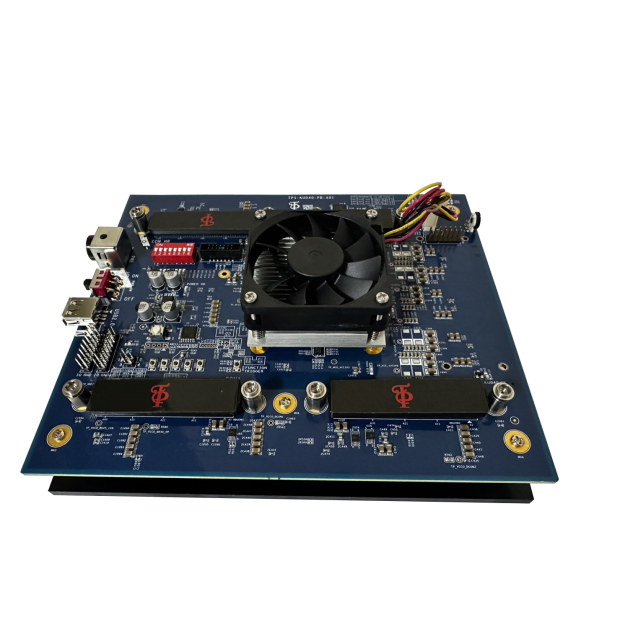

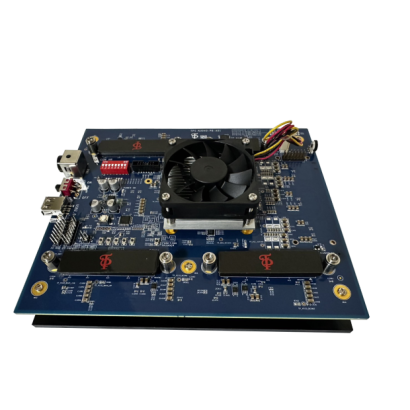

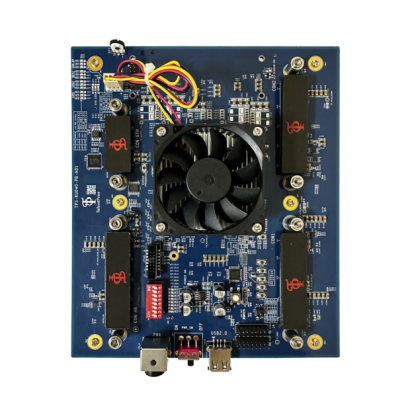

Kintex UltraScale XCKU040

• System Logic Cells (K):530
• DSP Slices:1,920
• Memory (Mb): 21.1
• The system has 421 general purpose I/Os , 16 GTH transceivers on 4 high-speed connectors.
  • TPS-KU040 FPGA Platform
  • TPS-KU040 FPGA Platform
詳細介紹

TPS-KU040

Empowering Large-Scale SoC Innovation with Scalable Capacity and Intelligent Control.

輕量化 Lite 機構、智慧監控、遠端部署:TPS m-View 讓硬體驗證更簡單、更可靠。

Lite & Flexible

針對子系統驗證優化,輕量化機構大幅降低硬體部署與現場展示 (Demo) 的技術門檻。

Efficient Connectivity

配備 421 組 HP IO 與 16 組 GTH 高速收發器,平衡效能與資源分配,滿足多元接口測試。

Smart Reliability

內建智慧型管理中心,支援遠端部署與 Self-Test 自我診斷,確保開發流程穩定無憂。

靈活敏捷的 PoC 驗證利器

TPS-KU040 搭載 Xilinx Kintex UltraScale FPGA 核心,是專為追求研發敏捷性設計的原型驗證平台。透過優化的 **20nm 製程技術**,該平台在維持低功耗的同時,能展現出優異的高速訊號整合 (High-speed signal integrity) 能力,協助研發團隊在產品開發初期快速排解設計瓶頸,達成更快的上市時程 (Time-to-market)

  • 完美的 PoC 與現場 Demo 工具: 輕巧的體積與強大的整合性,讓客戶能隨時隨地進行功能展示。
  • 彈性擴充架構: 支援多種規格 Daughter Cards,無縫對接多樣化工業標準介面。
  • 高可靠性監控: 即時功耗/溫度監控與自動斷電保護機制,為您的核心 IP 設計提供嚴密的硬體保護。
  • 智慧管理核心: 整合 TPS m-View 系統,支援遠端燒錄與即時診斷,大幅提升測試效率。

System Configuration

內建專業級通訊與存取接口,優化驗證與部署流程:

JTag / SPI Flash

Data Security

支援硬體級加密技術,嚴密守護企業核心開發機密:

Support AES-Key 256-bit Encryption

Technical Specifications

TPS-KU040 Hardware Resources
Process Technology 20nm Kintex UltraScale Architecture
System Logic Cell 530 K
VCCINT Core Power 60A
Internal Memory 21.1 Mb (Block RAM)
Transceivers Max Rate GTH: 8 Gbps
HP IO Count 421
GTH Transceivers 16 (TX/RX)
PCIe Compatibility Gen3 Supported
Smart Management TPS m-View Integrated

Request Full Specifications

Detailed datasheets and technical documentation are available upon request.
Please contact our team for more information regarding the TPS-KU040

Contact Our Technical Team
