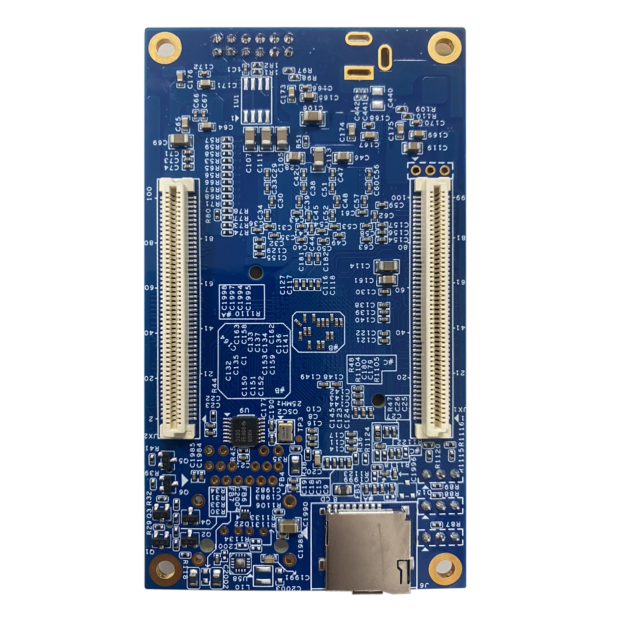

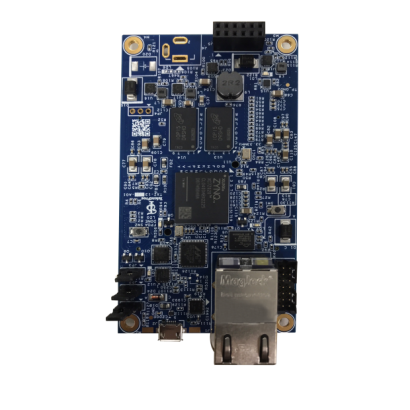

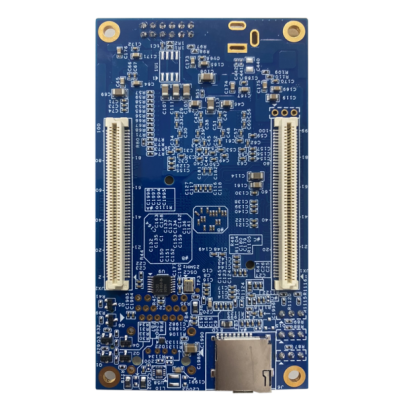

FPGA ARM based SOC module : TXZ-1300

TXZ-1300

•   SoC
  • XC7Z020-1CLG400C
• Memory
  • 1GB of DDR3 SDRAM
  • 128Mb of QSPI Flash
  • Micro SD card interface
• Communications
  • 10/100/1000 Ethernet
  • USB2.0
  • USB-UART
• User I/O (via dual board-to-board connectors)
  • 7Z020 Version
    • 123 User I/O (115 PL, 8 PS MIO)
    • PL I/O configurable as up to 55 LVDS pairs or 115 single-ended I/O
• Other
  • JTAG configuration port
  • User LED and push button
