Empowering Large-Scale SoC Innovation with Scalable Capacity and Intelligent Control.
輕量化Lite機構、智慧監控、遠端部署：TPS m-View 讓硬體驗證更簡單、更可靠。
Lite & Flexible
Advanced Connectivity
Smart Management & Reliability
-

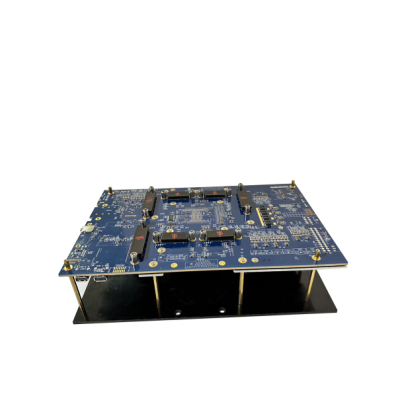

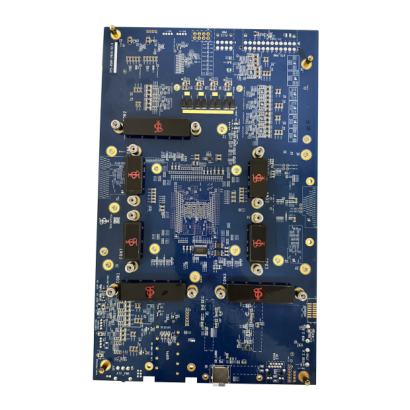

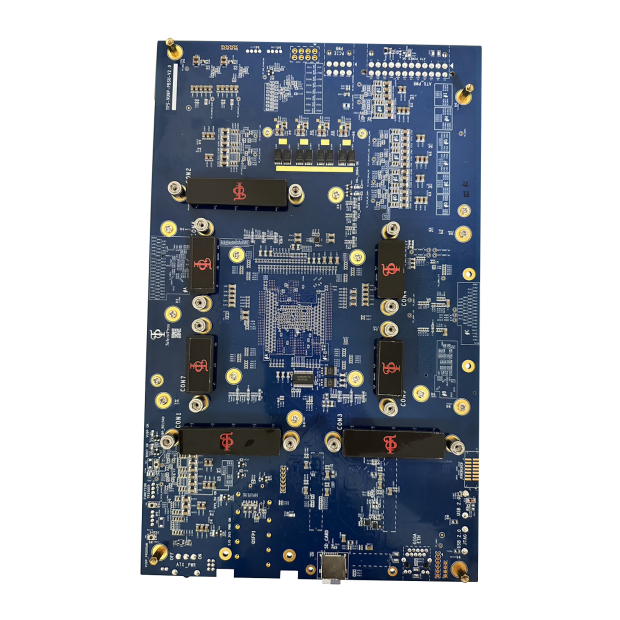

完美的 PoC 與現場 Demo 工具： 搭載 XCVU9P FPGA，輕量化設計，幅降低客戶的硬體部署門檻。
-
彈性擴充： 支援多種規格 Daughter Cards，滿足多樣化接口需求。
-
智慧管理與高可靠性： 內建智慧型管理中心，支援遠端燒錄、自我診斷（Self-Test）與即時功耗/溫度監控。自動斷電保護機制，確保開發流程萬無一失。
Configuration
USB 2.0 / Gigabit Ethernet / JTag / Micro SD Card
Security
Support AES-Key 256-bit Encryption
Smart Management & Reliability
Real-time monitoring of voltage, current, and temperature with automatic shut-down to prevent damage from over-limit conditions.
| TPS-VU9P IEP | |
|---|---|
| 房型Process | 16nm |
| 房型System Logic Cell | 2,586 K |
| VCCINT Core Power | 200A |
| Memory | 345.9 Mb ( Block RAM:75.9Mb, Ultra RAM:270Mb) |
| Transceivers Max Rate | 平日價GTY: 16 Gbps |
| HP IO | 513 |
| GTY | 76 (TX/RX) |
| DDR4 SODIMM | 16GB (2400Mbps) |
| PCIe | Gen4 / Gen3 |
| MIPI D-PHY | 1.5 Gbps |
Request Full Specifications:
Detailed datasheets and technical documentation are available upon request.
Please contact our team for more information regarding the TPS-VU9P-513.
