Daughter Cards

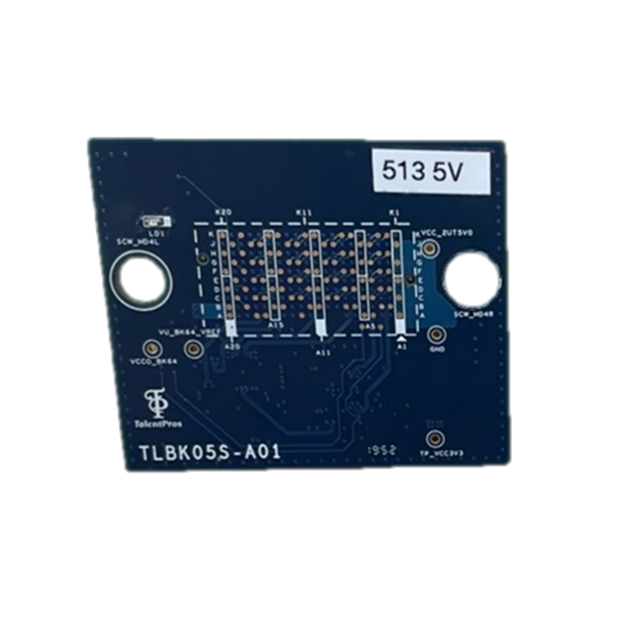

Loopback Card

Self-diagnostic program includes:
．System BOOT detection
．Voltage detection
．I/O detection
．GTY I/O testing
．HP I/O testing
．DDR4 SODIMM testing

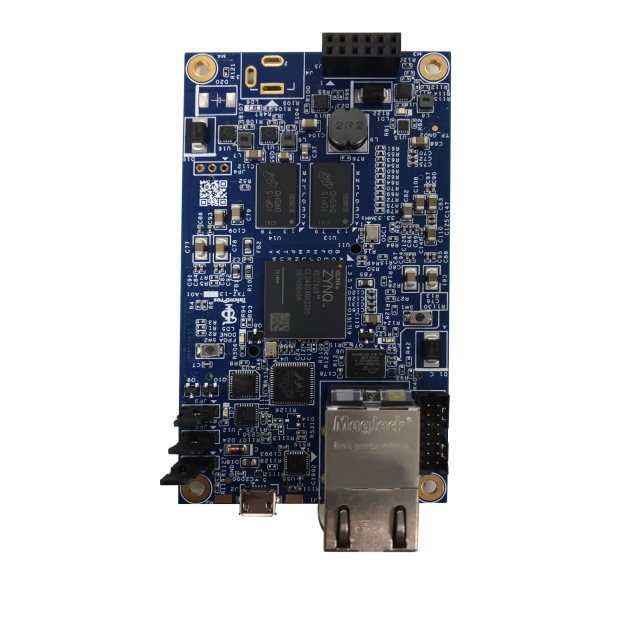

TXZ-1300




  SoC

XC7Z020-1CLG400C


Memory

1GB of DDR3 SDRAM
128Mb of QSPI Flash
Micro SD card interface


Communications

10/100/1000 Ethernet
USB2.0
USB-UART


User I/O (via dual board-to-board connectors)

7Z020 Version

123 User I/O (115 PL, 8 PS MIO)
PL I/O configurable as up to 55 LVDS pairs or 115 single-ended I/O




Other

JTAG configuration port
User LED and push button
