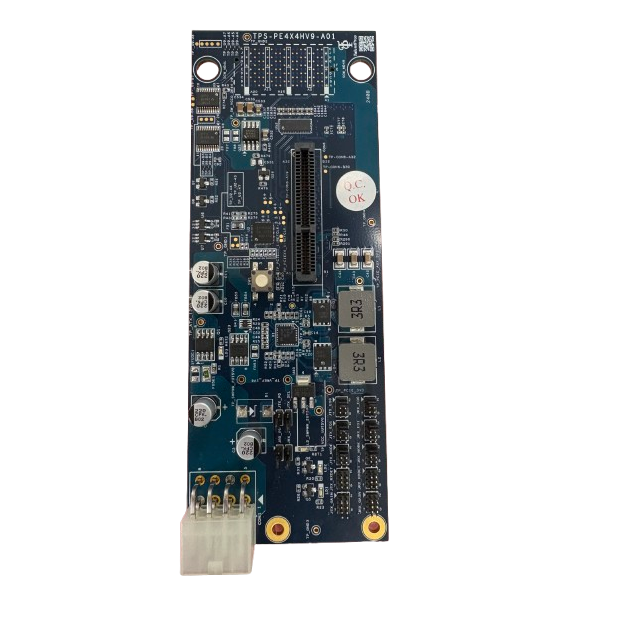

PCIe Gen4 X4 (Host) Board

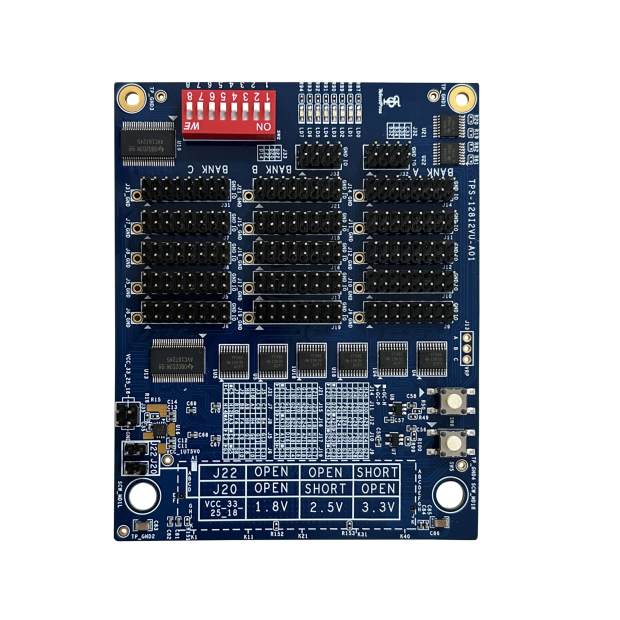

IO Translator Borad

．96*Level Shift IO 1.8V/2.5V/3.3V，
．32 HP I/O，
．DIP Switch 8 PIN，
．Push Button *2，
．LED*8

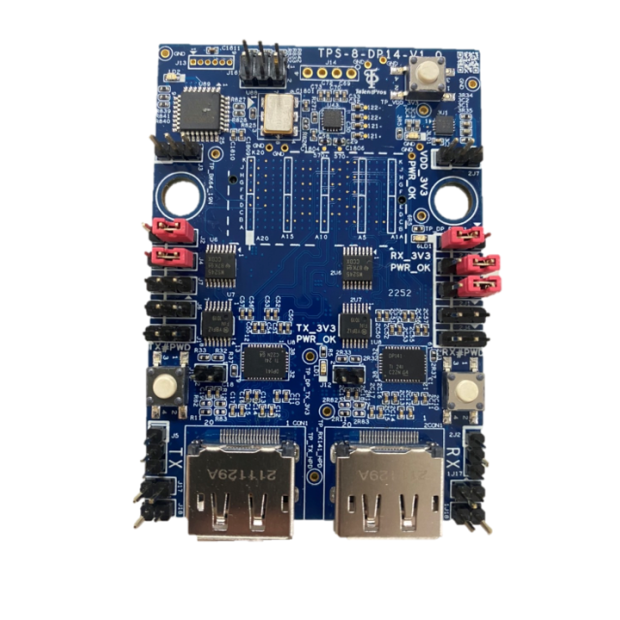

Display Port 1.4 Board

**supports 4 lanes of 1.62Gbps, 2. 7Gbps 5. 4Gbps, and 8. 1Gbps
•Displayport TX
。(One port) - DP1.4_8Gbps
。One port with four lanes
。Control Pins with jumpers
•Displayport RX
。(One port) - DP1.4_ 8Gbps
。One port with four lanes
。Support one RX port at a time
。Control Pins with jumpers

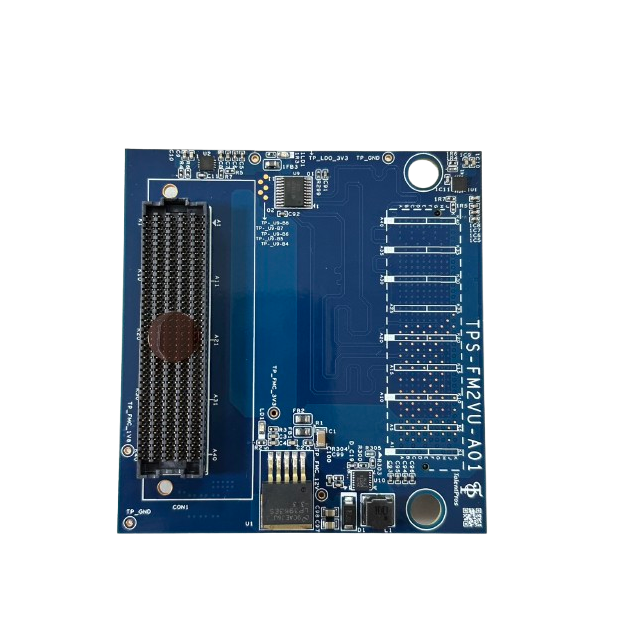

FMC Board

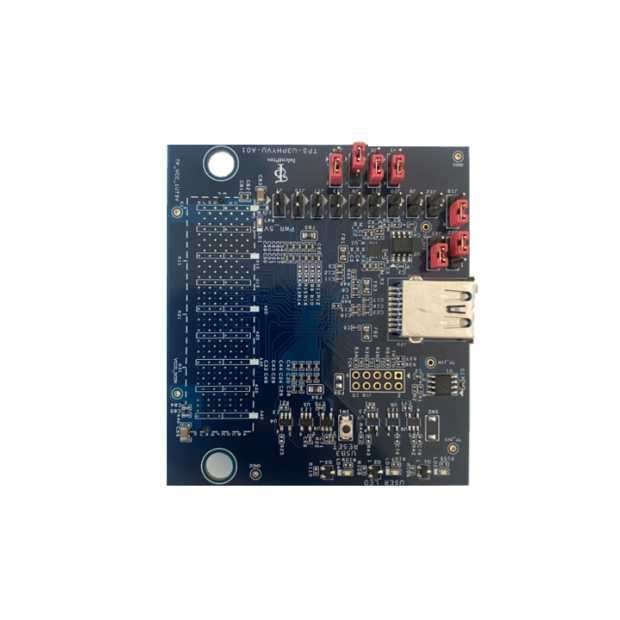

USB3.0 PHY Board TYPE-A (TUSB1310ZAY)

-Power IN: 5V
-Single Port 5.0-Gbps USB3.0: PIPE / ULPI Controller
-Reference clock: crystal 25MHz
-Support Host / Device Mode
-PHY reset button *1
-User LED *3

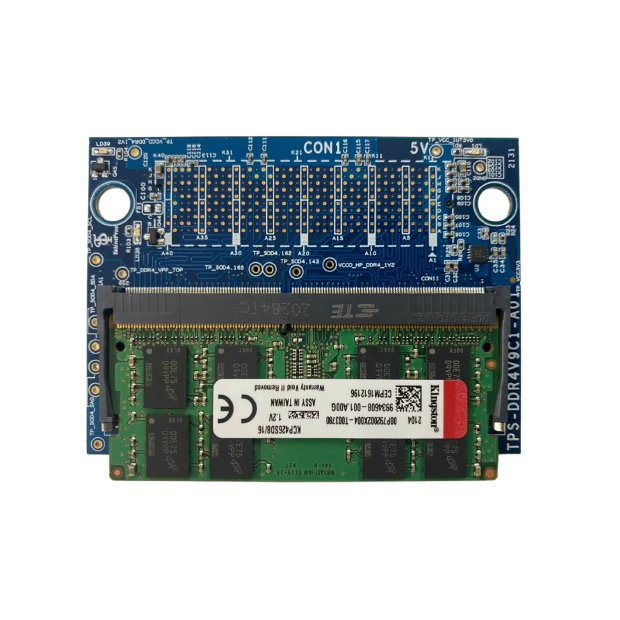

DDR4 Board

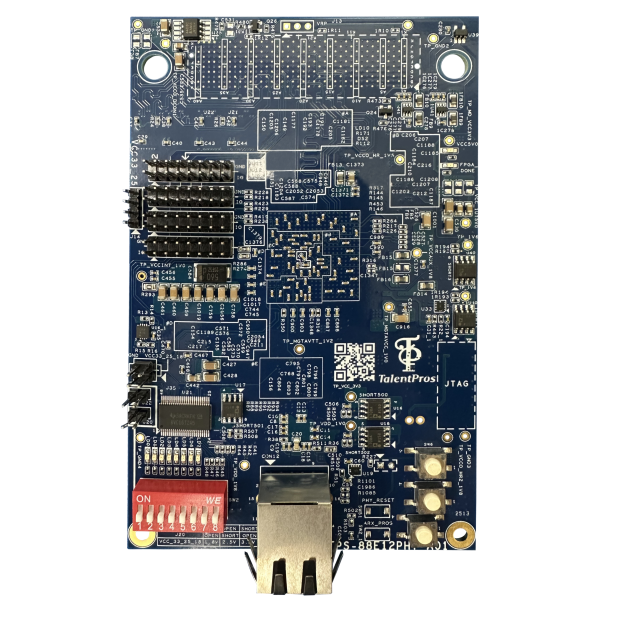

Ethernet Phy Board

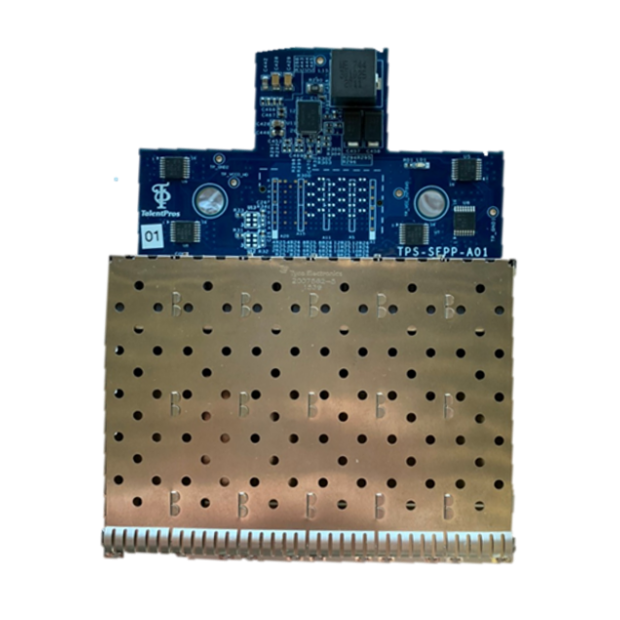

SFP Board

．12 Port

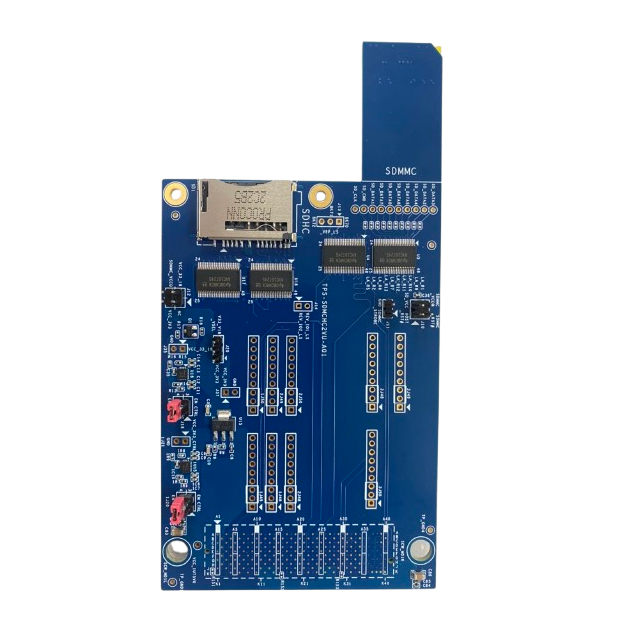

SD Card

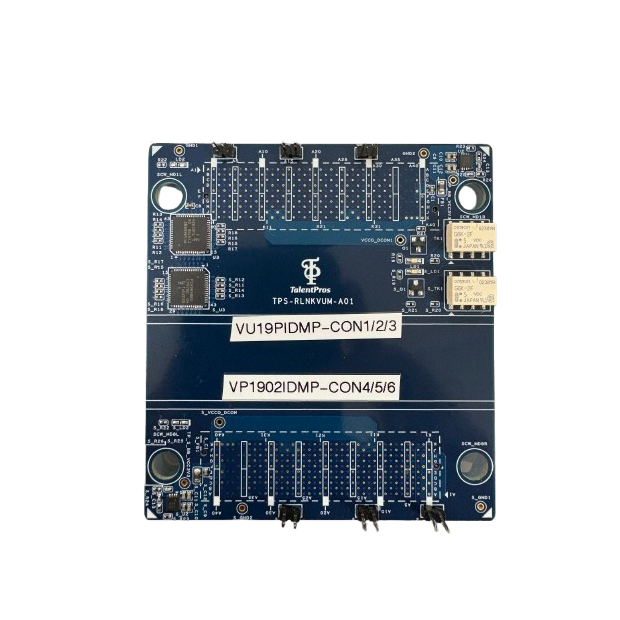

Bridge Board

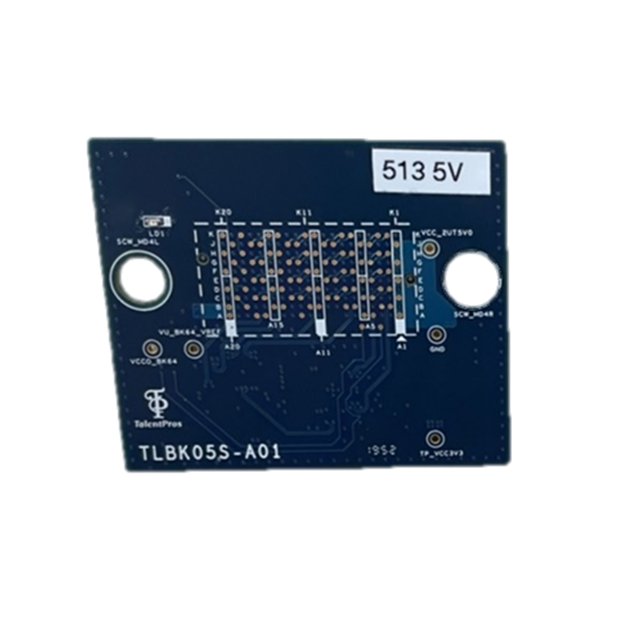

Loopback Card

Self-diagnostic program includes:
．System BOOT detection
．Voltage detection
．I/O detection
．GTY I/O testing
．HP I/O testing
．DDR4 SODIMM testing

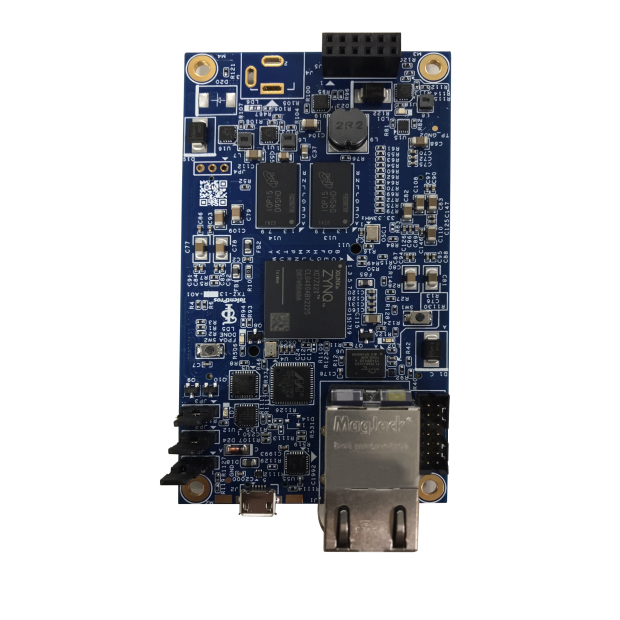

TXZ-1300




  SoC

XC7Z020-1CLG400C


Memory

1GB of DDR3 SDRAM
128Mb of QSPI Flash
Micro SD card interface


Communications

10/100/1000 Ethernet
USB2.0
USB-UART


User I/O (via dual board-to-board connectors)

7Z020 Version

123 User I/O (115 PL, 8 PS MIO)
PL I/O configurable as up to 55 LVDS pairs or 115 single-ended I/O




Other

JTAG configuration port
User LED and push button
